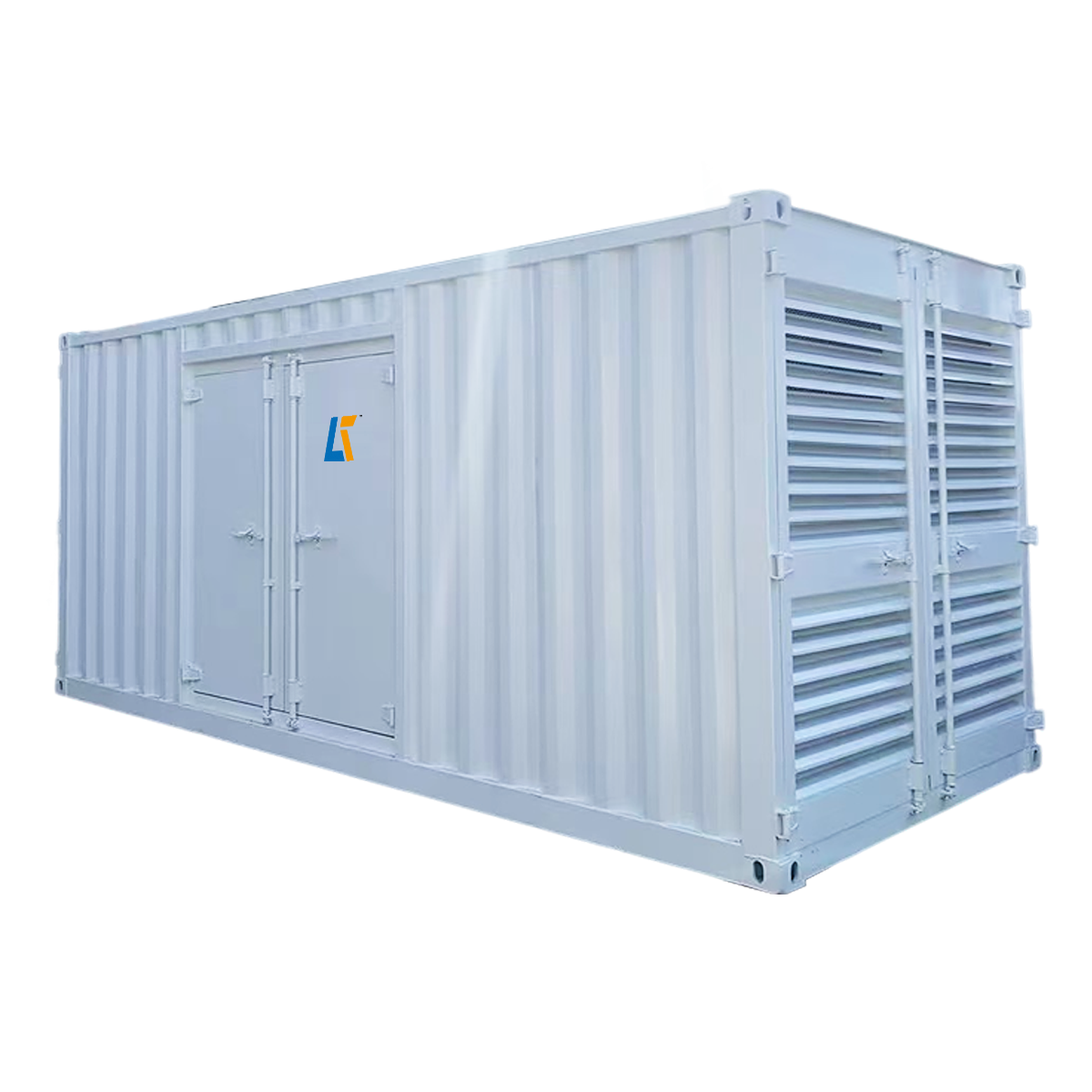

    Yuchai 400Kw 500Kva Silent Diesel Generator Set Water Cooled Electric Start Industrial Backup Power Solution

    Ask Lasest Price
    Brand Name : AIKE POWER
    Model Number : AY625
    Certification : ISO,OEM
    Price : USD
    Supply Ability : 20 set/m
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    Yuchai 400Kw 500Kva Silent Diesel Generator Set Water Cooled Electric Start Industrial Backup Power Solution

    Yuchai Power Generator 450KW/562KVA 50HZ 1500RPM Diesel Engine Generator
    Power Diesel Generator, 450kw Diesel Generator, Quiet Diesel Generator

    Yuchai power generator set with high voltage YC6TD780-D30 engine. Available in 50HZ/1500RPM configuration with adjustable voltage options: 380/220V, 400/230V, 415/240V. Also available in 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V.

    Available in multiple configurations: Open Type, weatherproof type, soundproof type, and trailer type.

    Optional Components
    • ATS options: ABB, Schneider Electric, SOCOMEC & Delixi brands
    • Controller options: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China
    Generator Standard Components
    • Yuchai Engine
    • Radiator for 40℃ environmental temperature with belt-driven cooling fans and safety shield
    • 24V charging generator
    • Single bearing generator with IP23 protection and H insulation
    • Shock absorber system
    • Dry air filter, fuel filter, and oil filter
    • Power output circuit breaker
    • Standard control panel
    • 12V battery with connection cables
    • Battery charger
    • Complete exhaust system with muffler
    • 8-hour base fuel tank
    • Complete documentation and manuals
    Technical Specifications
    Generator Set
    Genset ModelAY625
    Rating Power (KW/KVA)450/562
    Standby Power (KW/KVA)500/625
    Rating Ammeter (A)816
    Diesel Engine
    Engine ModelYC6TD780-D30
    Prime Power (KW/KVA)356/445
    Number of Cylinders6 cylinders in line
    Bore * Stroke (mm)152 * 180
    Displacement (l)19.598
    Compression Ratio14:1
    Governor TypeElectric start
    Rated RPM1500
    Exhaust System
    Exhaust Gas Flow (m³/min)33
    Max. Exhaust Gas Temperature (℃)550
    Fuel System
    Rating Fuel Consumption (l/h)117
    75% Load Fuel Consumption (l/h)87.75
    Dimensions & Weight
    Generator Set Dimensions (L*W*H mm)3303 * 1500 * 2000
    Generator Set Net Weight (kg)4130
    Frequently Asked Questions
    Q: Do you offer OEM service?
    A: Yes
    Q: What is your payment term?
    A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
    Q: What is your lead time?
    A: About 15-25 days after receiving advance deposit or original L/C.
    Q: What certificates do you have?
    A: We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
    Q: What warranty do you provide?
    A: One year or 1200 running hours (whichever occurs first). During warranty period, we supply free replacement for defective parts (excluding damage from incorrect operation). After warranty expiration, we provide spare parts at cost for maintenance.
